HYDRAULIC WORKSHOP PRESS

Hydraulic workshop press is designed for workshop and manufacturing sector. Capacity of the machine varies from 10 to 250 ton and machine’s weight varies from 62 to 2200. Some models are light and movable. Small hydraulic press models are suitable for garage and small workshop. Motorized models have joystick control for handy.

CATEGORY CODE: HPA

GENERAL FEATURES OF
HYDRAULIC WORKSHOP PRESS

The general features of the hydraulic workshop press we produce are listed.

  • Welded steel construction
  • Easy to operate
  • Pressure manometer
  • Table lifting tool
  • Adjustable table height
Hydraulic Workshop Press Overview
  • Fast approach, slow work speed with special
  • Joystick control (Available only motorized models)
  • Movable piston
  • Safety valve against overloading

PHOTOS OF
HYDRAULIC WORKSHOP PRESS

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.

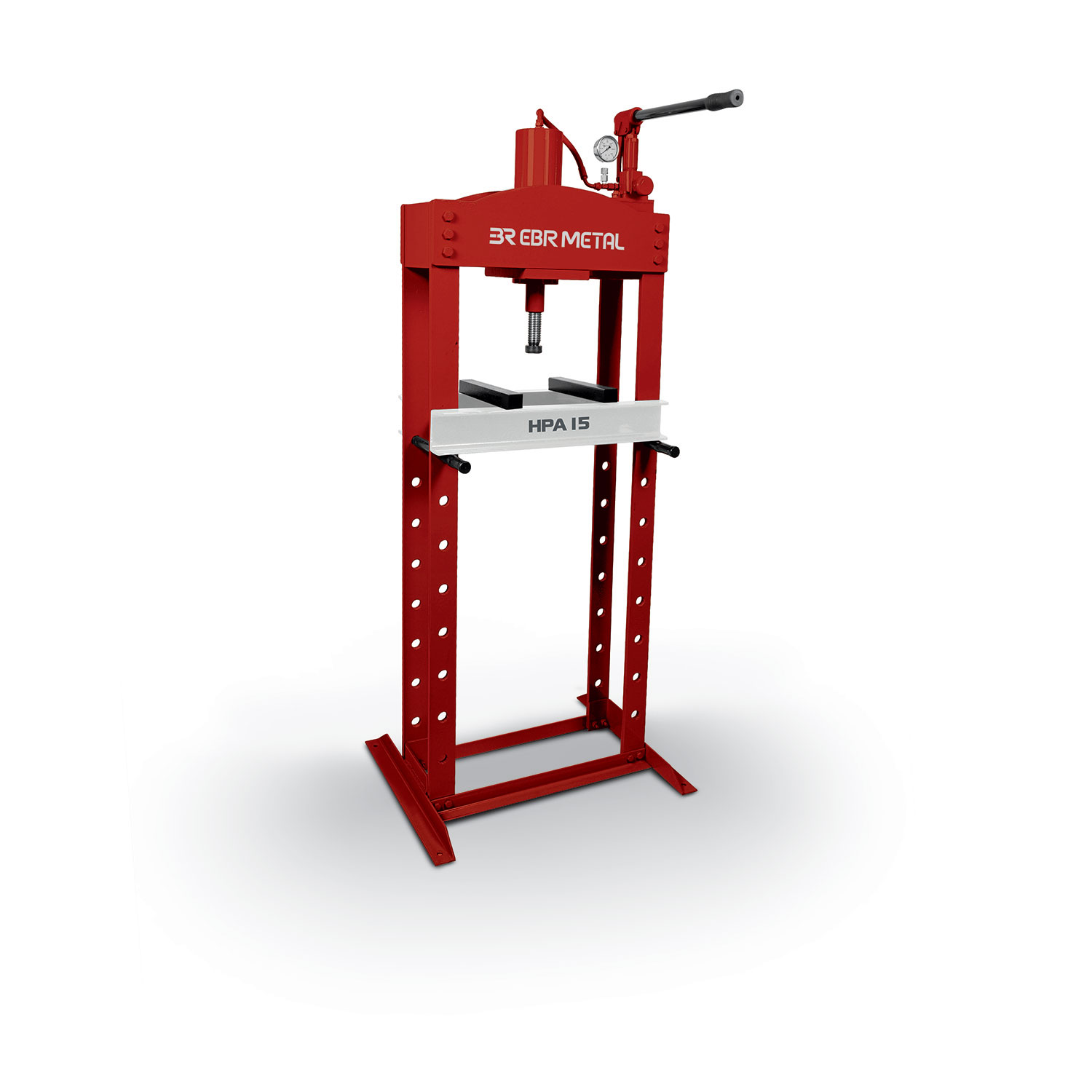

Hydraulic Workshop Press HPA 15

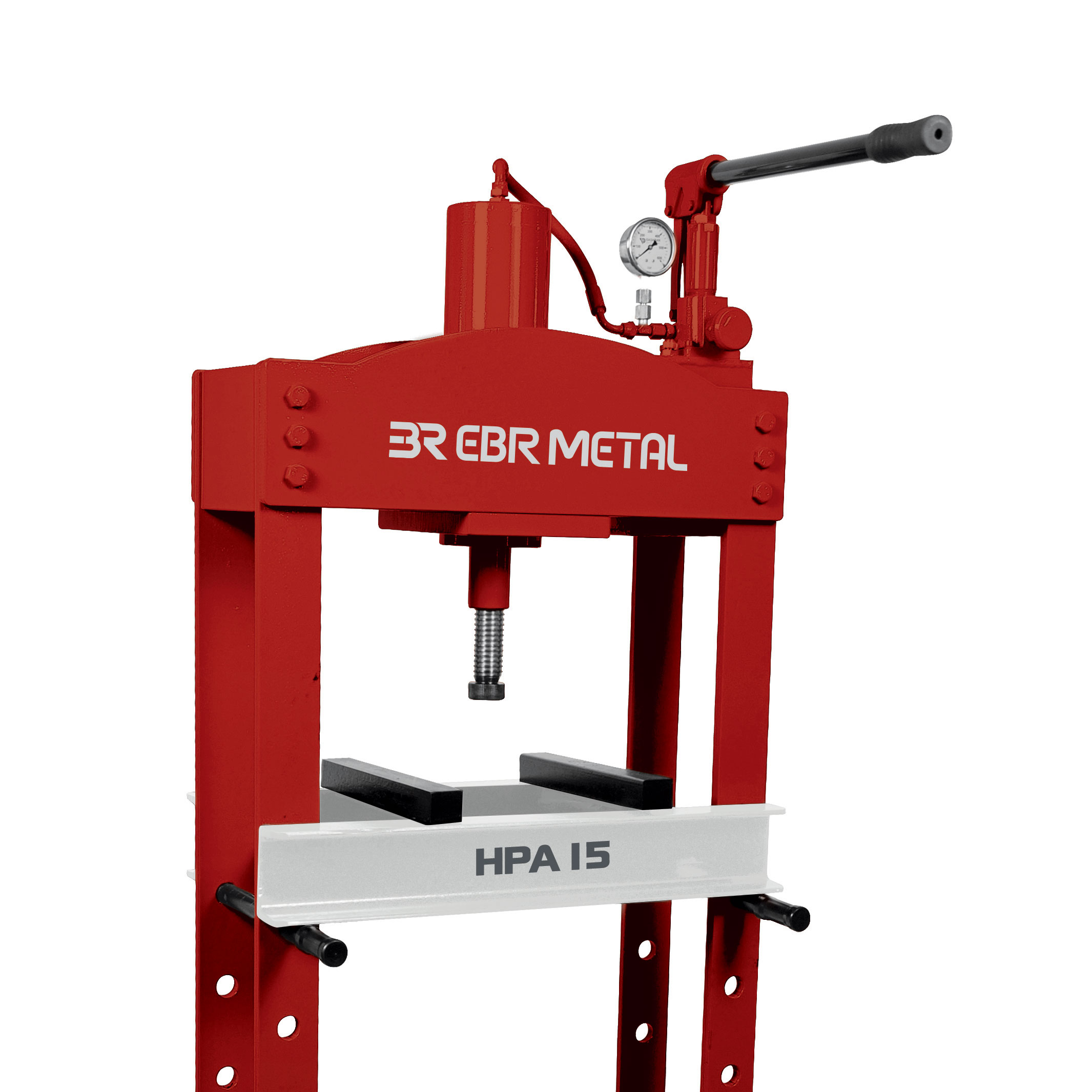

Hydraulic Workshop Press HPA 15 Detail

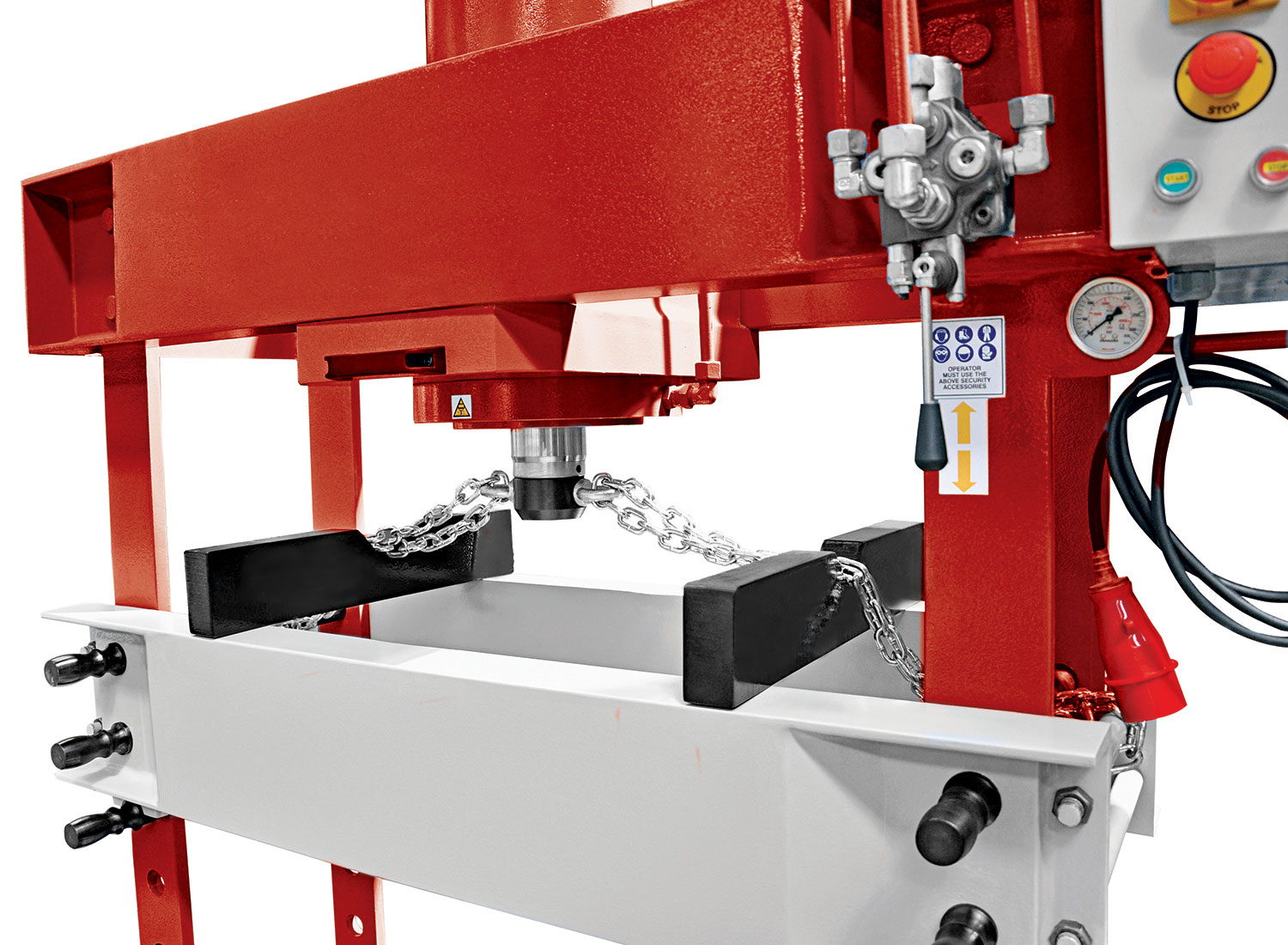

Hydraulic Workshop Press HP Details

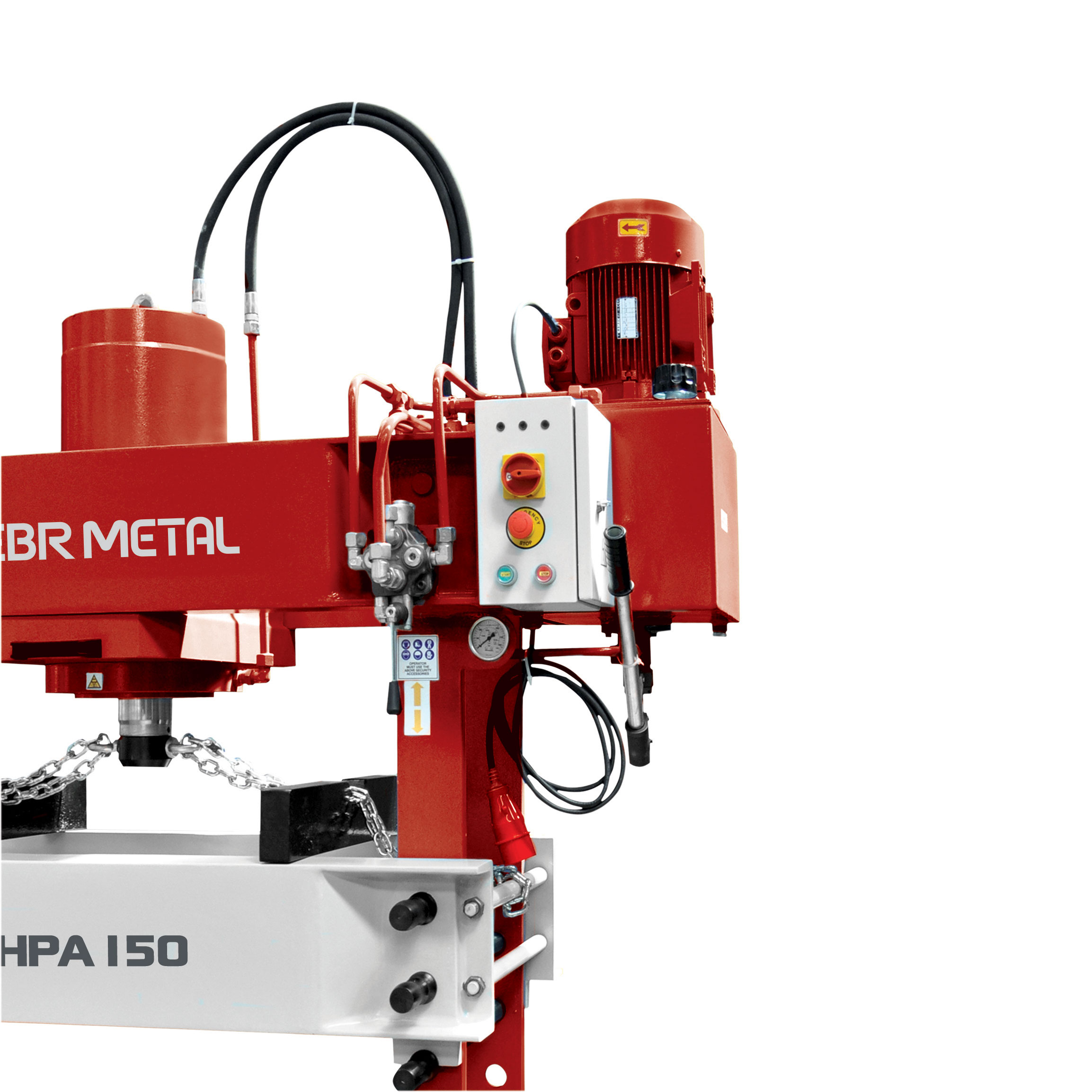

Hydraulic Workshop Press HPA 150 Detail

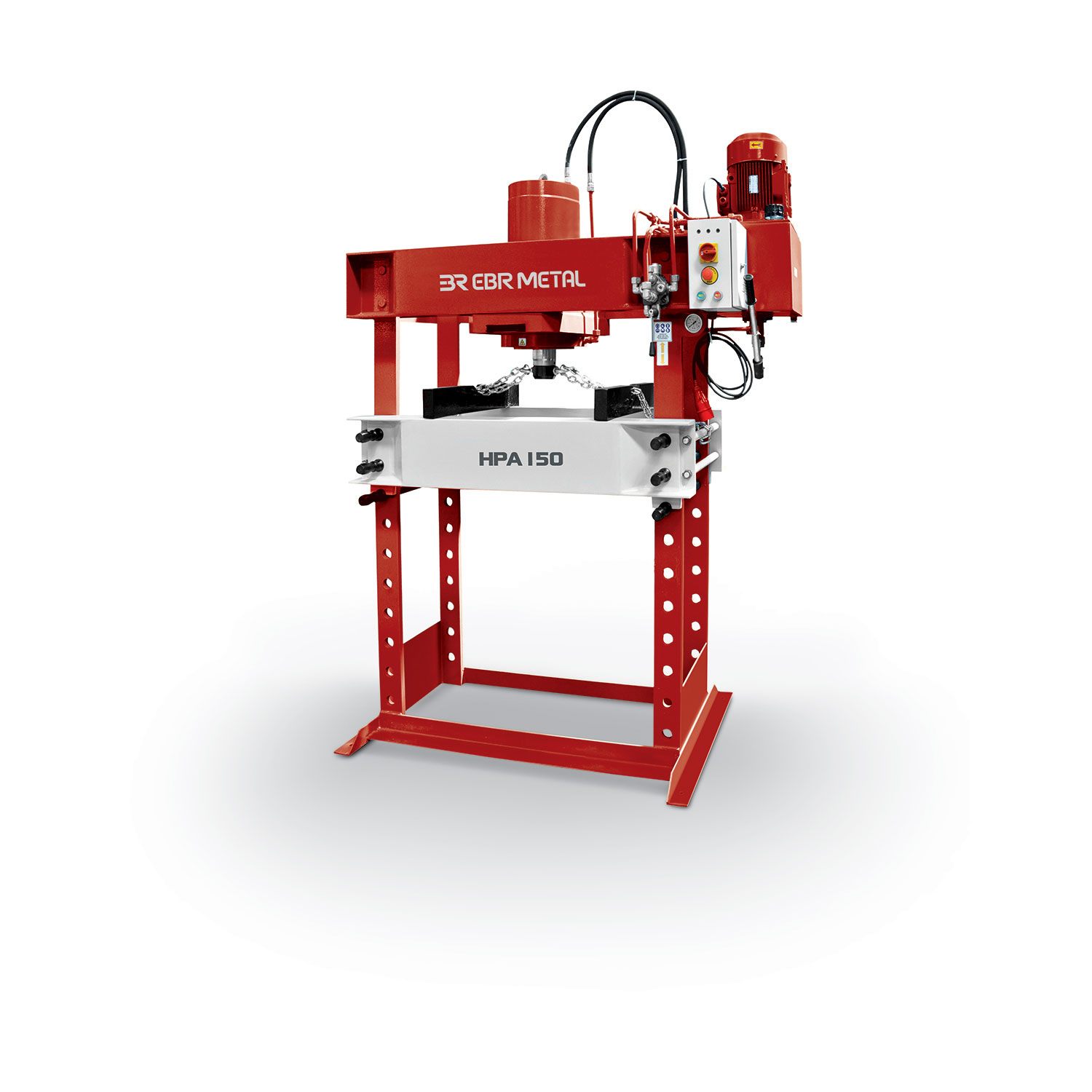

Hydraulic Workshop Press HPA 150



MODEL Capacity Stroke Maş. Working Pressure Diameter of Cylinder Arm Motor Power Pump Capacity Piston Downlifting Speed Piston Uplifting Speed Distance Between Columns Work Capacity Width Length Height Weight
  ton mm bar mm kw lt mm/sec. mm/sec. mm mm mm mm mm kg
HPA 10M 10 150 220 80 - 1.5 - - 125x400 200 280 500 800 62
HPA 10 10 200 220 80 - 1.5 - - 190x400 200 350 500 1300 98
HPA 15 15 200 255 80 - 1.5 - - 190x400 200 350 500 1500 105
HPA 25 25 200 270 100 - 2 - - 190x500 200 350 650 1800 155
HPA 30 30 300 250 120 1.5 5.7 8.4 11.2 200x700 850 680 1200 2030 360
HPA 50 50 400 250 150 2.2 5.7 5.4 6.9 300x800 850 780 1350 2150 500
HPA 80 80 400 250 190 3. 8.7 5.1 6.2 350x900 900 830 1570 2250 785
HPA 100 100 400 250 200 4 11.8 6.2 7.8 400x100 900 860 1660 2280 860
HPA 120 120 400 250 230 4 13.1 5.2 6.4 400x100 900 860 1670 2320 1000
HPA 150 150 400 250 250 5.5 17.1 5.8 6.9 400x110 900 870 1800 2380 1170
HPA 200 200 400 250 280 7.5 21 5.6 6.9 425x1100 800 930 1840 2430 1650
HPA 250 250 400 250 300 7.5 24 5.6 7.2 450x1200 800 1030 2050 2600 2200



Hydraulic Workshop Press

Why don't you get an offer for Hydraulic Workshop Press?

Get quote from us about your metal processing machinery needs. Tell us all the details.
