EBR METAL

We manufacture metal processing machines according to customer requested capacity.

Call EBR Metal: +90 332 502 88 48 | +90 332 502 88 49


MANUAL AND POWER OPERATED TRIMMING BORDERING MACHINES

These machines are usually manufactured for use in light and medium-thickness work. We have 3 different models according to usage requirement and purpose. They are used in many similar works such as construction of air conditioning channels and construction of stove channels.

CATEGORY CODE: BTM

GENERAL FEATURES OF
MANUAL AND POWER OPERATED TRIMMING BORDERING MACHINES

The general features of the manual and power operated trimmıng bordering machines we produce are listed.

Manual and Power Operated Trimming Bordering Machines Overview
  • High quality cast iron / steel construction frames
  • Forward-backward adjustable bottom shaft
  • Easy to carry for workshops
  • Rolls shafts are special steel material

STANDARD EQUIPMENT

  • Forward-backward adjustable sheet support
  • Control with foot pedal (KMT&KBT)
  • Gearbox motor with brake system (KMT&KBT)

OPTIONAL EQUIPMENT

  • Movement of top roll by hydraulic system (KBT)
  • Optional rolls for special jobs

PHOTOS OF
MANUAL AND POWER OPERATED TRIMMING BORDERING MACHINES

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.

Manual and Power Operated Trimming Bordering pedal

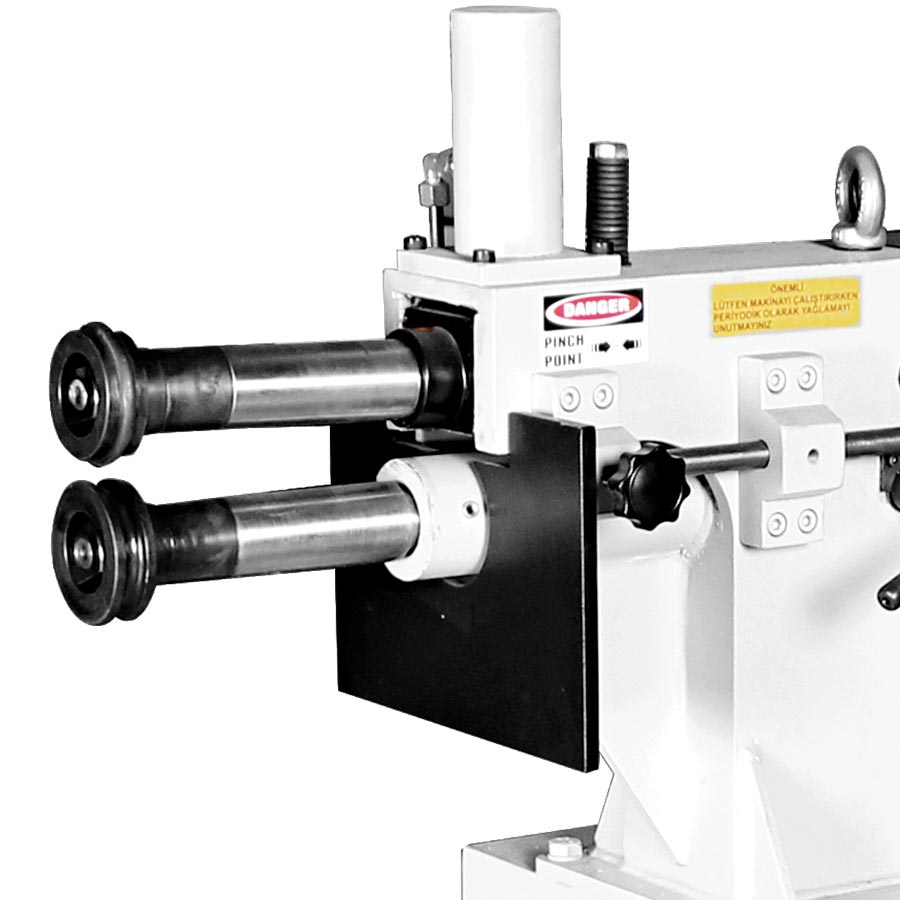

Manual and Power Operated Bordering Machines KT detail
Manual and Power Operated Trimming Bordering Machines KBT
Manual and Power Operated Bordering Machines detail
Manual and Power Operated Bordering Machines detail

MODEL Shaft Length Bordering Capacity Roll Diameter Throat Depth Roll Speed Motor Power Machine Dimensions Weight
  mm mm mm mm m/min. kw (LxWxH) mm kg
KMT 140 1.2 62 100 32 0.75 900x450x1350 135
KT 0.8 110 0.8 52 80 - - 380x180x380 30
KT 1.2 140 1.2 62 100 - - 560x220x500 50


MODEL Shaft Length Bordering Capacity Roll Diameter Throat Depth Roll Speed Motor Power Machine Dimensions Weight
  mm mm mm mm m/min. kw (LxWxH) mm kg
KBT 2.5 250 2.5 96 160 5 1.5 1400x550x1120 350
KBT 4.0 300 4 126 200 5 2.2 1700x570x1200 500

MODELS OF
MANUAL AND POWER OPERATED TRIMMING BORDERING MACHINES

There are 3 different types of Manual And Power Operated Trimmıng Bordering Machines that we manufacture regularly.
Depending on the customer request changes can be done on the specifications of the machine.

For small workshops. Machine comes with 8 sets of standard rolls (KT 0.8- 7 Sets).
Cast iron heavy duty main frame.
Working is more comfortable with motor and foot pedal. Machine comes with 8 sets of standard rolls.
Cast iron heavy duty main frame.
Complete with bottom stand.
Powerful engine and high-quality frame make it perfect for thick sheets. Machine comes with 4 set of standard rolls.
Welded steel construction.
Steel shafts assembled with bronze bushings.
Gearbox motor with brake system.
Complete with bottom stand.
Manual and Power Operated Trimming Bordering Machines Slider
