HYDRAULIC CORNER NOTCHING MACHINES

Our Hydraulic Corner Notching Machines are fixed and angle adjusted corner cutting machines. It has a strong structure with sturdy durable body structure and steel construction tables. In order to precisely adjust the angle and depth of the corner to be cut, the top surface of the machine is machined with T-channel.
The desired cutting angle can be adjusted precisely and quickly from 30 to 140 degrees with the help of the features mounted on the machine table. Automatic cutting gap adjustment provides quality and precise cutting by adjusting the gap according to the type and thickness of the material. Provides precise and repeatable cutting.

PRODUCT CODE: HCN

GENERAL FEATURES OF
HYDRAULIC CORNER NOTCHING MACHINES

The general features of the hydraulic corner notching machines we produce are listed.

  • The biggest notcher size is 250x250 mm
  • HCN-9 variable rake hydraulic corner notchers have a strong frame with is statically and dynamically rigid steel table and top beam material
  • The hydraulic notcher has compact structure, small volume and convenient operation
  • The HCN-6 Hydraulic notcher can cut up to 6 mm
Hydraulic Corner Machine Overview
  • The notching angle fixes in 90° with high notching speed
  • T slot top table realizes precise cuttings and there is no need for alignment for different sheet thicknesses by means of automatic blade gap adjustment
  • HCN-9 series perform frequent cutting repeatability via 4 hydraulic hold-down cylinders
  • Optional Equipment: Automatic feeding system

PHOTOS OF
HYDRAULIC CORNER NOTCHING MACHINES

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.

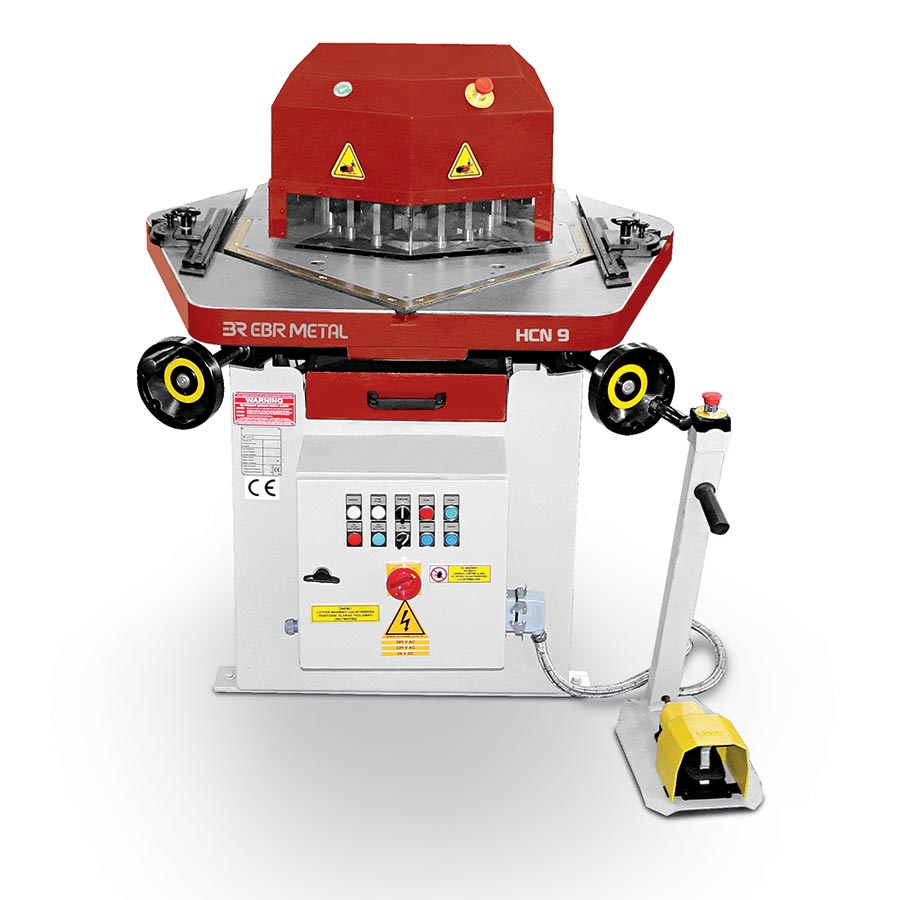

Hydraulic Corner Machine Overview

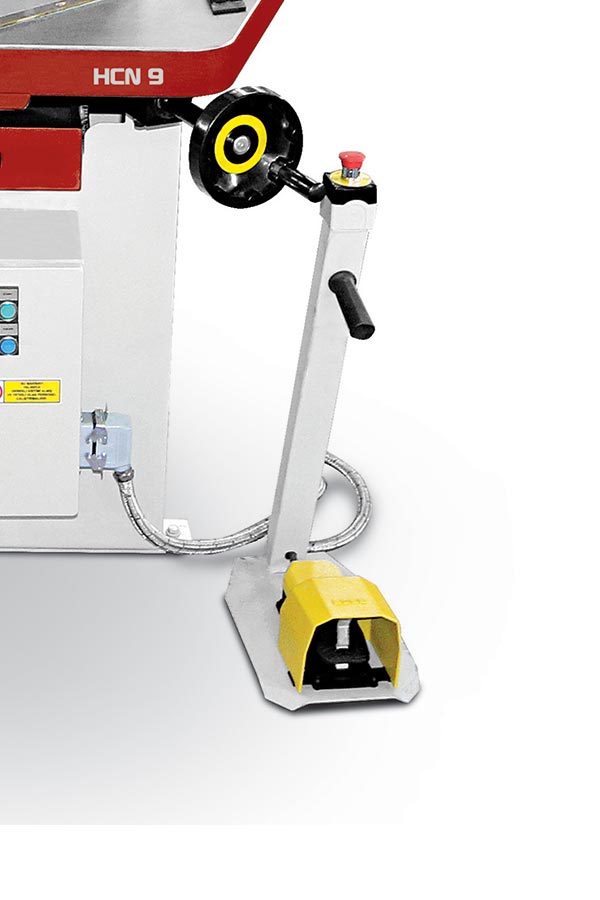

HCN-6 Foot Pedal

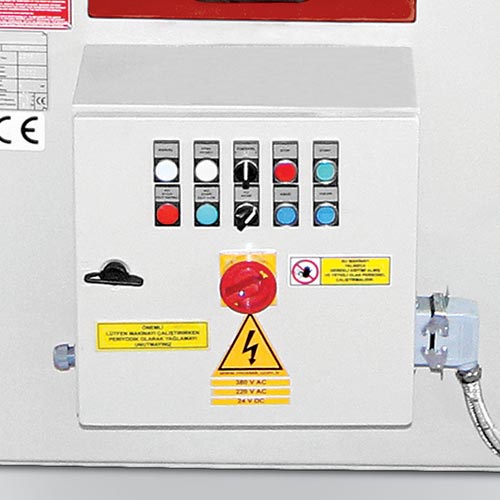

HNM-6 Control Panel
HCN 6

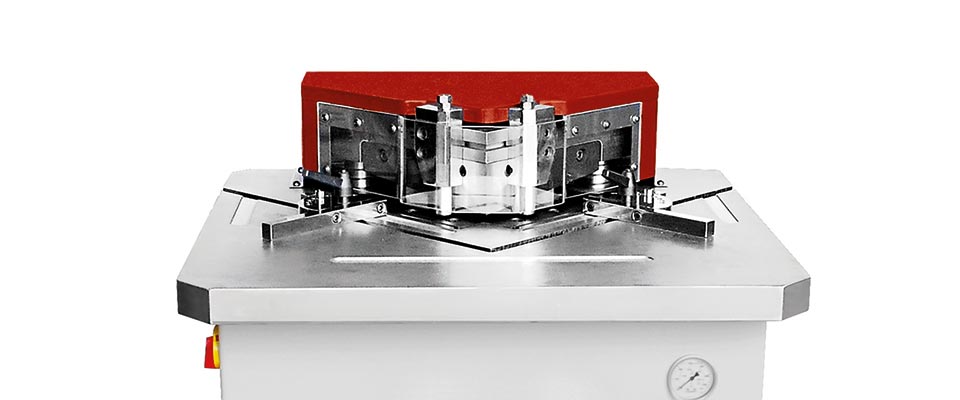

Hydraulic Corner Machine Detail

MODEL Steel Stainless Motor Power Table Dimension Cutting Angle Max. Ctting Pieces Blade Length Oil Tank Capacity Max. Working Pressure Width Length Height Weight
mm mm kw mm degree per min. mm lt bar mm mm mm kg
HCN 6 6.5 (90°) 3 (90°) 4 800x750 90 25 250x250 35 200 850 1010 1400 630
HCN 9 6 (60°-140°)/ 4 (30°-59°) 3 (60°-140°)/ 2.5 (30°-59°) 4 1150x610 30-140 20 200x200 35 200 1150 1000 1200 650

MODELS OF
HYDRAULIC CORNER NOTCHING MACHINES

There are 2 different types of Hydraulic Corner Machine that we manufacture regularly.
Depending on the customer request changes can be done on the specifications of the machine.

Hydraulic Corner Machine Overview

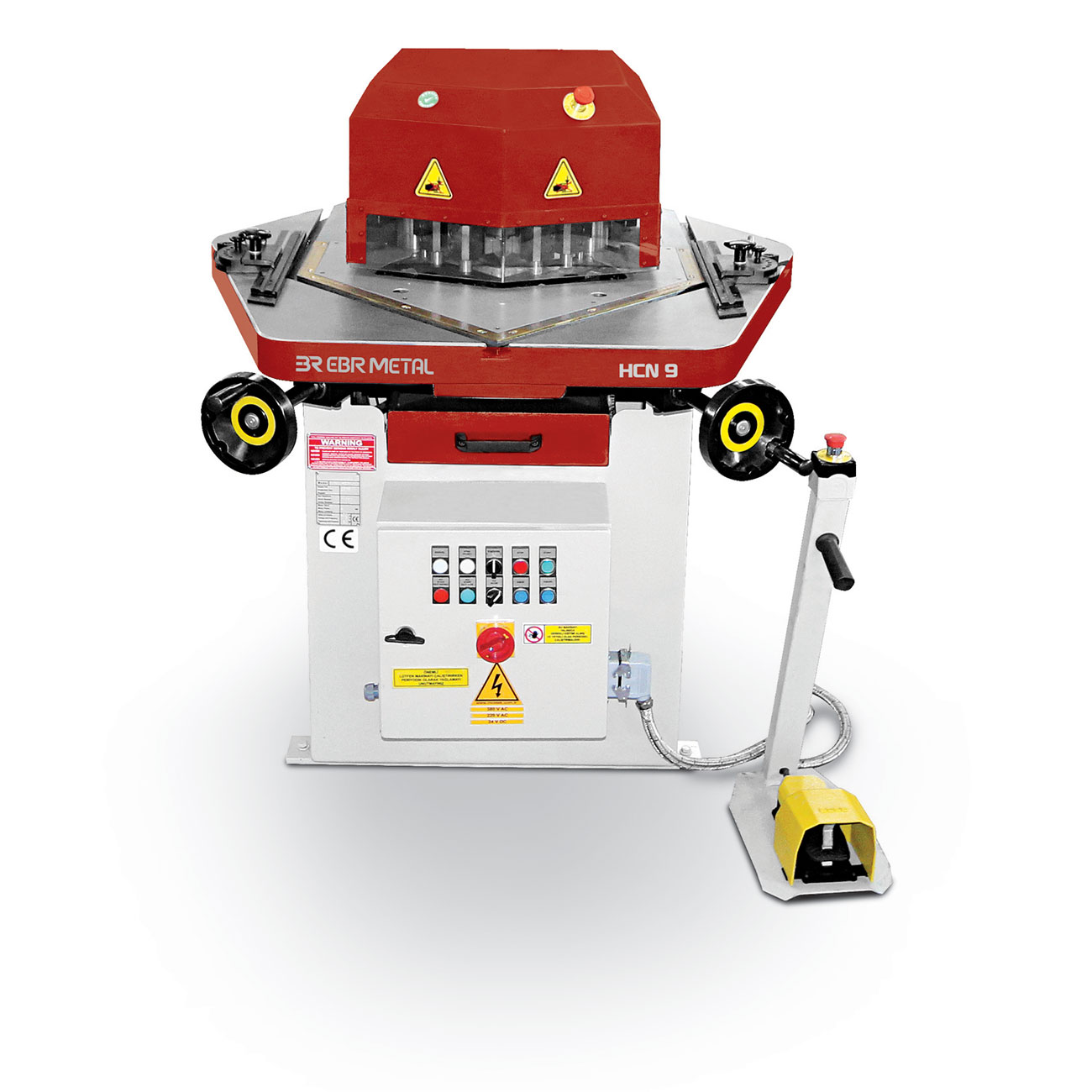

Hydraulic Corner Machine HCN 6
Hydraulic Corner Machine Detail
